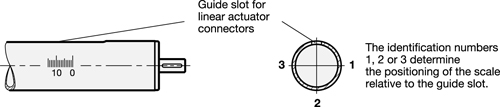

Longitudinal scales GN 299

For Standard Stroke Lengths l1 of the Linear Actuators GN 291

TypeA

Scale values ascending to the left



TypeB

Scale values ascending to the right

TypeC

Scale values decreasing towards middle

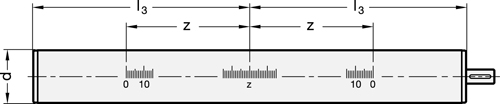

TypeD

Scale values ascending towards middle
